Frequency Analyzer

Archive Product: This item is no longer available for purchase but is kept for informational purposes.

Ring Modulator with controllable high order filters that reduce cross distortions and enhance the variations!

View More Product Details

Shipping & Returns

Free U.S. ground shipping on orders $150+. Learn more

Return or exchange your purchase for any reason within 30 days of receipt. Learn more

Hear this pedal

Sounds clips

Max Ring Mod with Filter Off

Blended with Filter Off

Blended with Filter On

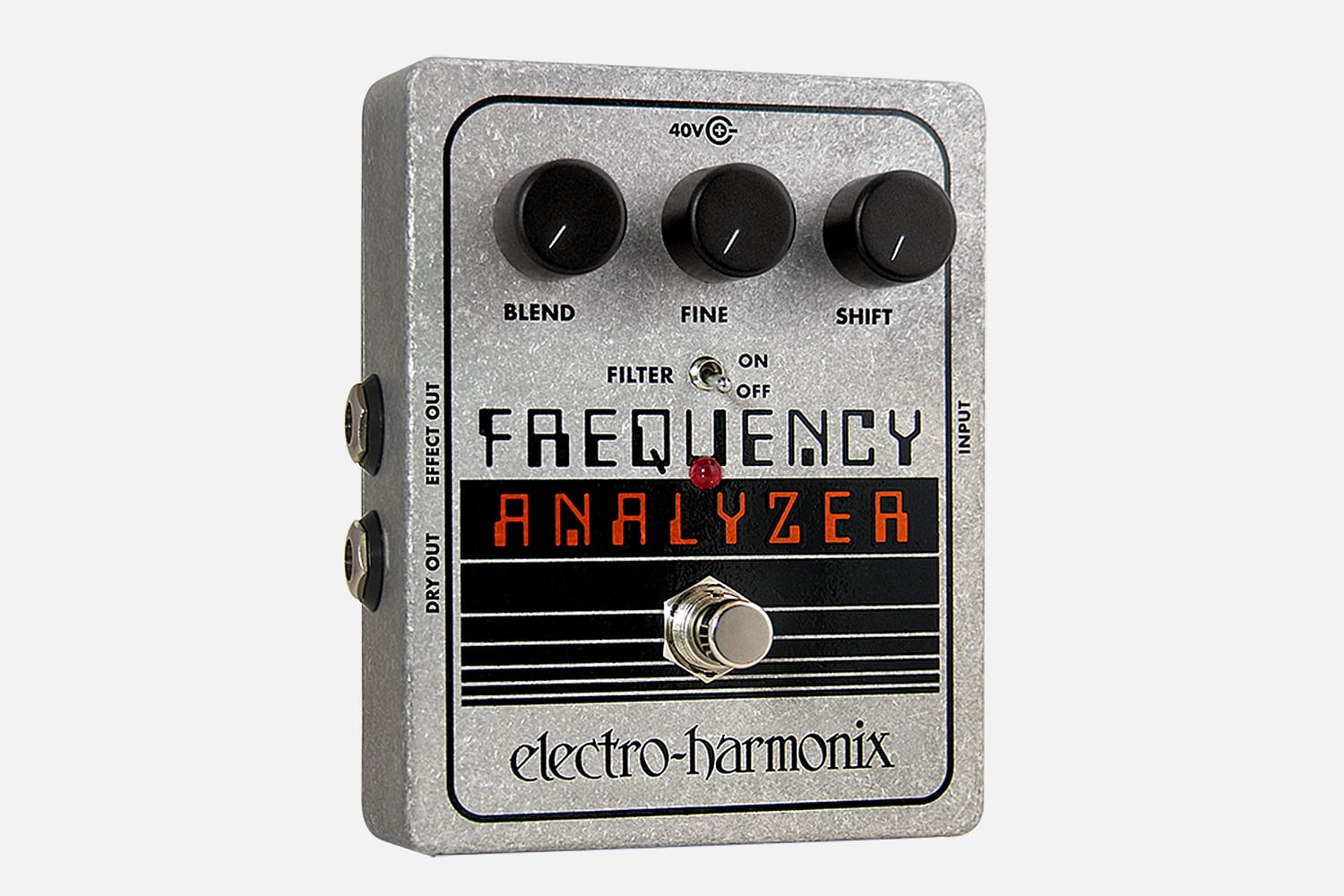

The EHX Frequency Analyzer adds moving harmonies to the note or chords being played. Unlike other Ring Modulators, the Frequency Analyzer has controllable high order filters that reduce cross distortions and enhance the variations. The course and fine control let the user set a single frequency that will then be both added and subtracted from the original note or chord. Blend control lets you mix the new notes with the original. This is a must have pedal, especially for techno cats. Devo had their biggest hit using the Frequency Analyzer.

True bypass
Tough and compact die-cast chassis
Power adapter included

Circuit	Analog
Bypass	True Bypass
Audio	Mono
Power Type	AC Power Adapter
Power Supply	40VDC-100mA power adapter included
Current Draw	30mA
Size / Format	Medium, Micro
Dimensions	4.75 x 4 x 2.25
Year Released	2008
UPC	683274010830
